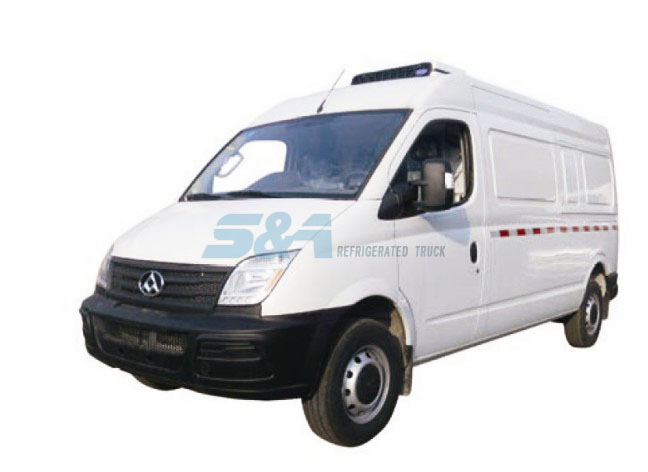

6.9 cubic meters MAXUS small refrigerated truck
(0 reviews)
SKU:N12329154815
Lead Time: 30Days
3C certification, ISO9001:2000 certification, GJB9001A-2001 quality certification, Warranty: 1Year
Operating Manual In English:
Available
Variations
-
- Color Selection:
- Customized Available
-
- Customized Size: Available
Product Actions
Product Name: 6.9 cubic meters MAXUS small refrigerated truck
Chassis Model: SH5041XXYA7D4
Engine Model: SC25R136.1Q4 / 136 horsepower
External dimensions (mm): 5700/5910 * 1998 * 2345/2552/2679
Internal dimensions (mm): 2870 * 1670 * 1550
Unit volume (m³): 6.9
Load capacity (kg): 855/675
Total mass (kg): 3800
Wheelbase (mm): 3850
Features
Product Name: 6.9 cubic meters MAXUS small refrigerated truck
Chassis Model: SH5041XXYA7D4
Engine Model: SC25R136.1Q4 / 136 horsepower
External dimensions (mm): 5700/5910 * 1998 * 2345/2552/2679
Internal dimensions (mm): 2870 * 1670 * 1550
Unit volume (m³): 6.9
Load capacity (kg): 855/675
Total mass (kg): 3800
Wheelbase (mm): 3850
Technical & Performance
- High strength aluminum alloy with edge wrapping, new package edge aluminum alloy tensile strength from 205Mpa to 265Mpa, degree of extension is increased from 170Mpa to 235Mpa.
- Special design of cross-section of the profile makes it is easy to connect with the sub-frame.
- Overall strength of the subframe can be improved by connection.
- Outer profile structure is improved, no rivets appearance, and beautify the truck.
